● Features

Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time

● What's in the box?

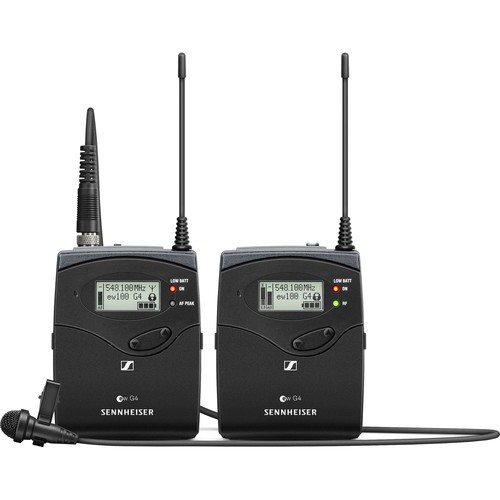

EK 100 G4 camera receiver
SK 100 G4 bodypack transmitter
ME 2 clip-on microphone (ew 112 P variants only)
ME 4 clip-on microphone (ew 122 P variants only)
4 AA batteries
CA 2 camera adapter
CL 1 3.5 mm jack cable
CL 100 XLR to 3.5 mm jack adapter cable
quick guide
safety guide
manufacturer declaration sheet

● Technical Data EK 100 G4

● Frequency range E 823 865MHz
Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 160 g
Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio ≥ 110 dBA
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with receiver switched off: ≤ 25 µA
Adjacent channel rejection ≥ 65 dB
Intermodulation attenuation ≥ 65 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity < 1.6 μV for 52 dBA eff S/N
Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Blocking ≥ 70 dB

● Technical Data SK 100 G4

Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 160 g
Signal-to-noise ratio ≥ 110 dBA
RF output power Max. 30 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
Input impedance 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage 3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Frequency stability ≤ ±15 ppm
